Removal Procedure


Important: To reduce the chance of damage to the trim panel leave the switch in the panel until after the panel is removed from the door.

Lower the door window.
Remove the inside handle bezel. Refer to Door Inside Handle Bezel Replacement .

Remove the pull handle plug.

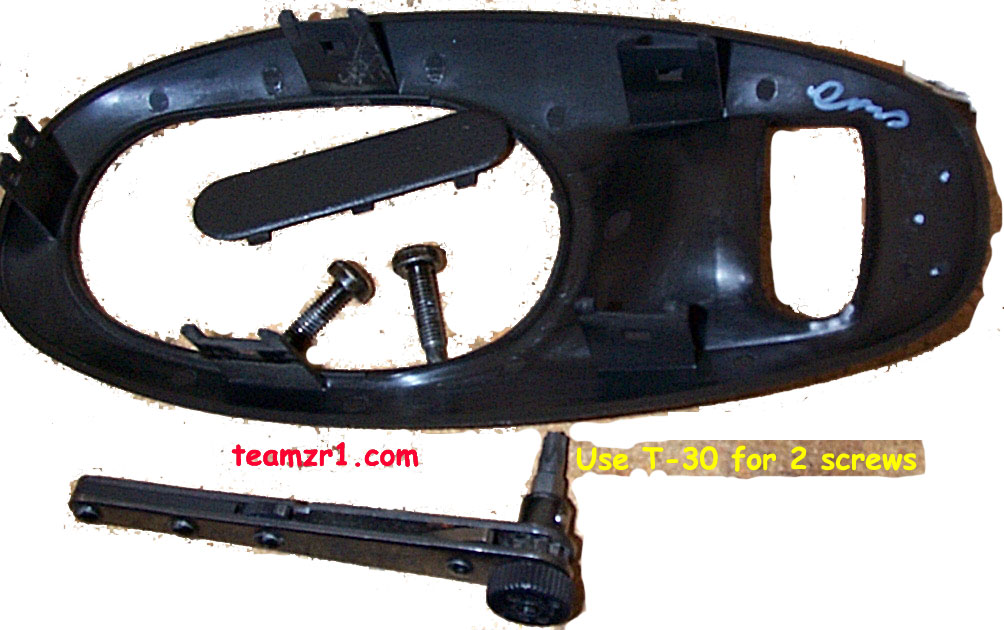

Remove the screws behind the pull handle plug.

Notice:
Insert the fastener removal tool between the male fastener, which is attached to the trim panel, and the female retainer, which is in the door. Incorrectly inserting the tool between the head of the female retainer and the door will break the fasteners.

For better sight access to the fasteners start by first prying out the fastener at the rear of the trim panel that is approximately 50 mm (2 in) up from the trim panel seam.
Pry out the remaining trim panel fasteners working your way forward.

Lift the trim panel up off the upper retainers and reposition the panel by the door.

Remove the harness connector from the switch.
Remove the trim panel with absorber, switch, and speaker grill.

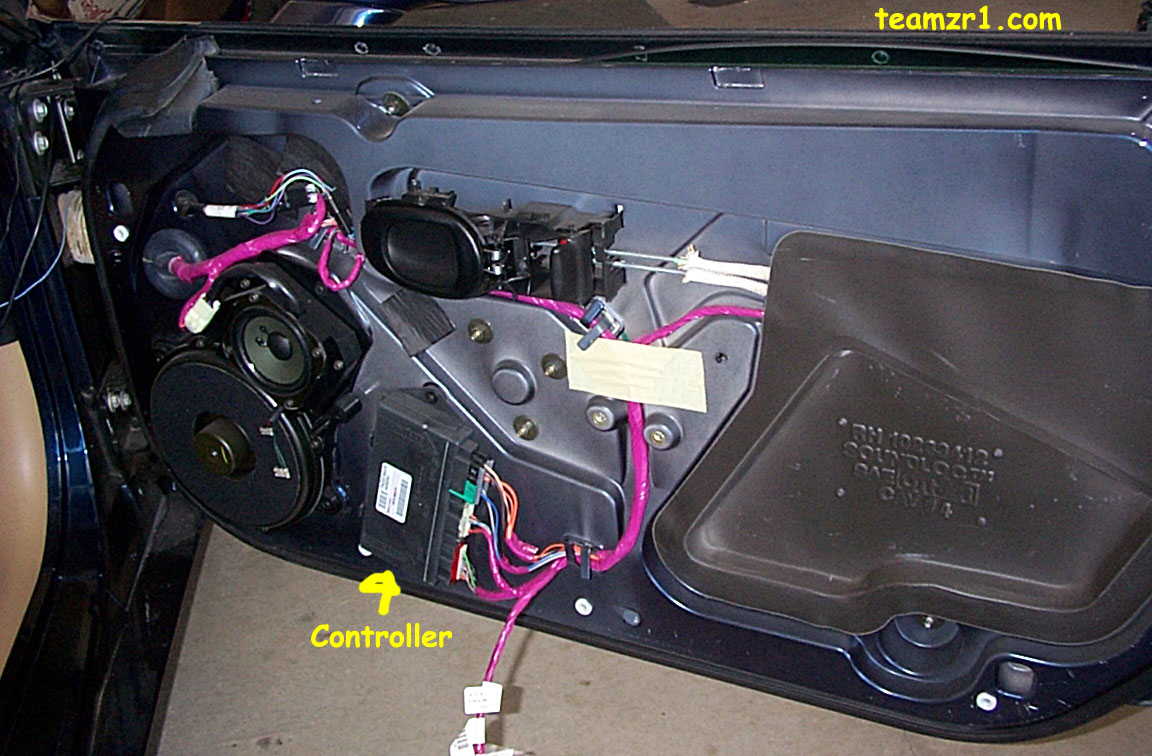

Remove any trim panel upper retainers that remained on the door.
Transfer parts as necessary.

Installation Procedure


Reinstall any loose upper retainers to the door trim panel.
Position the trim panel near the door and install the switch harness to the switch.

Install the trim panel to the top of the door engaging the upper retainers.
Align all the trim panel side and lower fasteners with the retainers in the door.

Press the trim panel firmly to the door at each fastener location.

Notice:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application.
Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure.
Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified.

These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the screws behind the pull handle.

Tighten the pull handle screws to 6 N·m (53 lb in).

Install the pull handle plug.

Install the bezel to the handle.
8.1. Position the bezel around the inside door handle.

8.2. Push firmly on the bezel to engage the locking tabs to the door.

Attached Files doortrim.jpgdoortrim2.jpgdoortrim3.jpgdoortrim4.jpg
