Vehicle information:

• 0-60 est 2.4 sec, RWD, estimate
• ¼ mile: 9.5 sec @ 150+ mph, estimate
• Top Speed 220 mph estimate
• 1,200 lbf downforce w/ ZTK pkg at top speed
• Exhaust provides 37 lbf Thrust at peak power
• Better ride than ZO6
• ZTK aero only is optional on base car, w/o suspension & tire changes
• 165 lbm more than ZO6
• Split rear window on coupe, which vents engine bay
• Coupe engine air intake on rear hatch
• ZTK adds rear brake cooling ducts on coupes hatch
• CF roof
• Tires same size as ZO6, 275 F & 345 rear
• New design 10 spoke CF wheels option
• New J58 Brake pkg, Longer fibers, dissipates heat better and front is 400mm F rotors 13.7in (larger) and thicker for more thermal mass
• Larger rear wheel bolt diameter, due to increased torque output
• Beefed up 8 speed transmission
• No front trunk
• Same interior
• Blue calipers
• Wishbone rear vent for rear brakes
• Clint Simone GM development driver
• 3,670 lbm dry mass, 236 lbm more than ZO6
• 3.5 lbm/hp
• 80 to 200 to 80 = 24.5 sec, 22% faster than 19 ZR1
• Not limiting production volume
• 15 total heat exchangers
• Cargo Volume = 9.1 cubic feet
• LT7 engine: 5.5L V8 flat plane crank, twin turbos 76mm
o 1,064 hp @ 7.000 rpm, 828 lbf-ft Torque @ 6,000 rpm
o 8,000 rpm redline
o 800 lf-lbf 3000 to 7000 rpm
o Most powerful V8 in a car
o 193 hp/liter
o Twin turbos (76mm compressor wheel) w/ integral exh manifold-turbine housing, reduce volume for turbo lag reduction, virtually no lag = smart engine engineers.
o Turbo/engine air flow > 600,000 liters/min.
o Added scavenge oil pump stage for turbos, 7 total
o 850 hp was original goal, engine guys always over perform. Heart of Corvette.
o 24 psi peak boost, 20 psi nominal
o Air system operates like 2 independent 4 cyl making 532hp from 2.75L
o Secondary port fuel injection, used at idle & employed +80% of the time
o Beefed up piston, con rod and wrist pin
o Compression ratio 9.8:1, down from 12.5:1
o 4.5 mm shorter conrod and taller piston
o New head casting w/ ports at different angles
o New cam profile /timing w/ less overlap
o 2 separate intake manifolds w/ reduced volume, one for each bank
o PFP 11 MPa up from 8.5 MPa on LT6, 130%
o Max fuel consumption = 2 gpm at max output or top speed, 35 miles range, refuel <10 minutes

LT7 Twin-Turbocharged 5.5L DOHC VVT DI

Bore & stroke (in. / mm): 4.104 x 3.150 / 104.25 x 80
Block Material: A319 cast aluminum with cast-in iron cylinder liners and four-bolt main bearing caps
Oiling System: Seven-stage dry sump (8-qt. capacity) with oil-spray piston cooling
Oil Type: Dexos R 5W50 synthetic
Cylinder Head Material: A356 T6 cast aluminum
Combustion Chamber Volume: 59.92cc
Compression Ratio: 9.8:1
Valvetrain: Dual overhead camshafts (four valves per cylinder) with mechanical finger-follower valve train and dual-coil valve springs; dual-independent camshaft phasing
Valve Size (in. / mm): 1.77 / 45 titanium (intake) & 1.37 / 35 sodium filled Nimonic (exhaust)
Fuel Delivery: PDI (DI – Max pressure: 5,076 psi (35 Mpa / 350 bar) & Port Fuel Injection)
Firing Order: 1-4-3-8-7-6-5-2
Throttle Body: Twin 65mm single bore (electronic)
Charging: Twin 76 mono-scroll ported shroud ball bearing turbos (67mm MAR compressor), E-Waste gates
Charge Cooling: Dual engine-mounted water to air charge coolers
ECU: GM E68 (32-bit processing)
Horsepower (hp / kW): 1,064 / 873 @ 7,000 rpm
Torque (lb.-ft. / Nm): 828 / 1123 @ 6,000 rpm

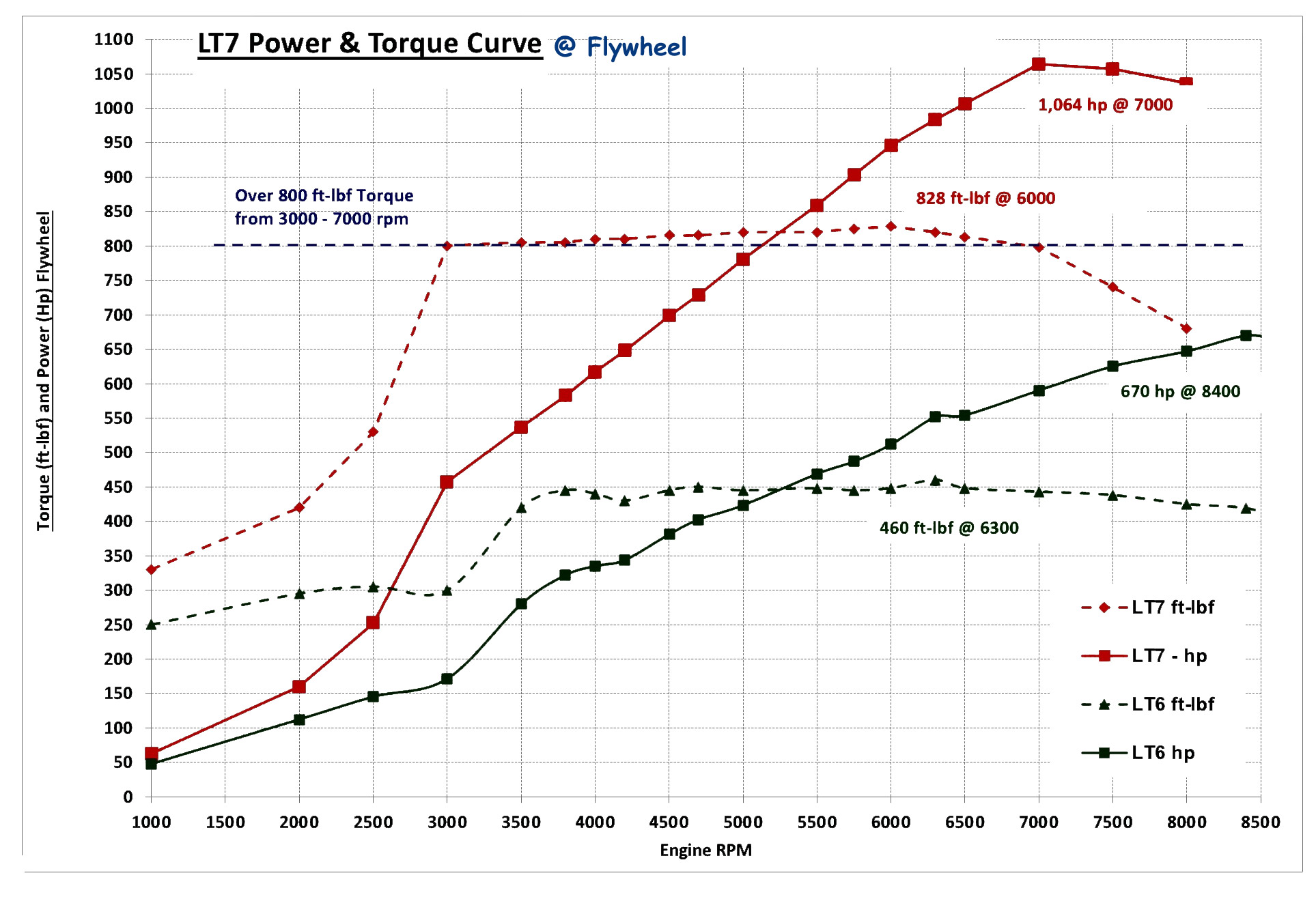

Estimated power and torque curve:

Mar is used in the 2 turbochargers of the LT7 engine, 1,900F tolerant:

MAR-M 421 is a highly advanced nickel-based superalloy renowned for its exceptional properties. This remarkable alloy consists of cobalt, tungsten, and aluminum as its principal alloying elements, synergistically contributing to its outstanding strength and creep resistance even at extreme temperatures up to 1100°C.
These unique characteristics make MAR-M 421 an ideal choice for a wide range of high-temperature applications that demand superior performance and reliability. Moreover, this remarkable alloy exhibits weldability, machinability, and corrosion resistance, further enhancing its suitability for various engineering and industrial applications.

The aerospace industry heavily relies on MAR-M 421 for its exceptional properties, making it an ideal choice for manufacturing aircraft engines, gas turbine parts, and combustion chambers. This super alloy is also extensively used in power generation applications, playing a crucial role in producing gas turbines, steam turbines, and even nuclear reactors.

Furthermore, the oil and gas industry benefits from MAR-M 421, employing it in critical components such as pumps, valves, and wellhead equipment. Additionally, the chemical processing sector embraces this alloy due to its remarkable corrosion resistance and ability to withstand high temperatures. It is a preferred choice for equipment that operates under challenging conditions.
With its versatility and superior characteristics, MAR-M 421 continues to contribute significantly across multiple industries, ensuring optimal performance and durability in demanding environments.

Compare of C8 Z06 & ZR1 at Flywheel
